These pumps are commonly combined with Nitrile, Santoprene or PTFE Elastomers. With these elastomers they are ideal for pumping of water and water-based fluids, non-aggressive fluids, oily fluids and fluids having low acidic or alkali concentrations Aluminium Pumps offer a relatively low-cost solution to many pumping applications. For this purpose, the main industries that choose Aluminium pumps are Paints, Marine, Mining, Ceramic and Wastewater/Pollution management.
| 1/2" TeryMarine Metal | ||||
|---|---|---|---|---|

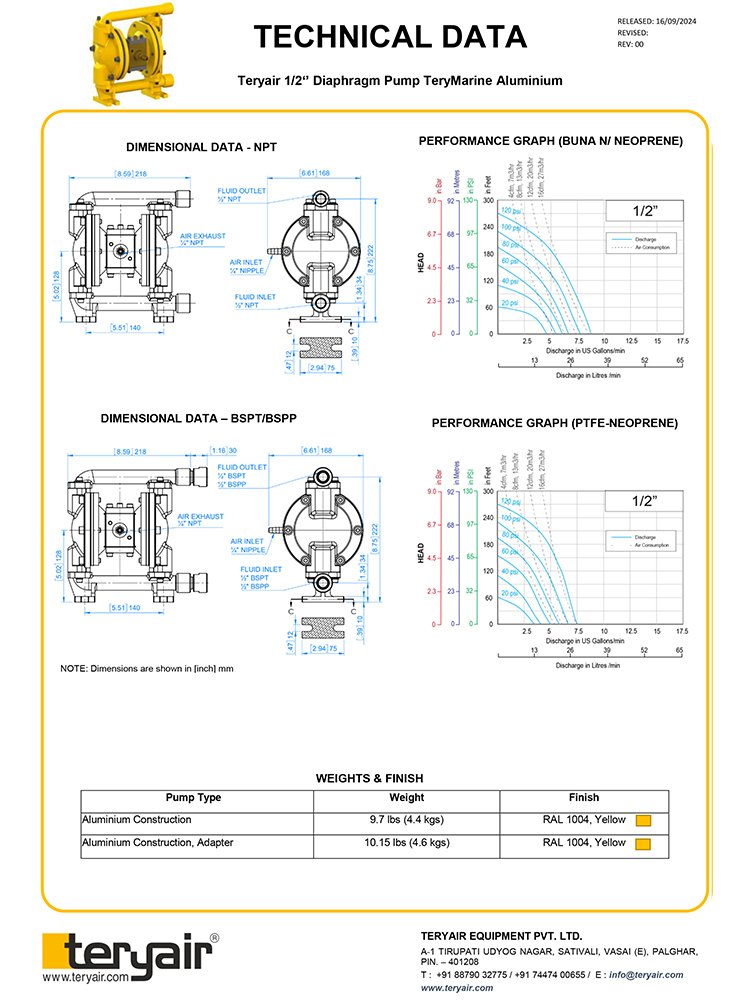

| Brief Specifications ( for full specs, download Technical Data Sheet) | ||||
| Max Flow rate BunaN/Santoprene | 13.7 | gpm | 51.8 | lpm |
| Max Flow rate PTFE | 13.3 | gpm | 50.3 | lpm |
| Displacement per Stroke - Rubber | 0.017 | gal | 0.064 | Litre |
| Displacement per Stroke - PTFE | 0.650 | ft | 2.457 | Litre |
| Suction Dry BunaN/Santoprene | 9.0 | ft | 2.7 | mtr |
| Suction Wet BunaN/Santoprene | 28.5 | ft | 8.7 | mtr |
| Suction Dry PTFE | 4.0 | ft | 1.2 | mtr |
| Wet Suction (PTFE) | 29.19 | ft | 8.9 | mtr |
