Air Motors are used for mixing, lifting, and pulling applications in explosive zones. Speed and torque can be varied by simple modulation of input air pressure and air volume. These air motors are suitable because of the many features that they exhibit.
For example, these air motors are able to be loaded to the stall points without damage. Air motors can also tackle variable loads and are capable of being operated in environments where electrical motors are hazardous. An important feature of compressed air motors is their compact size as compared to electrical motors

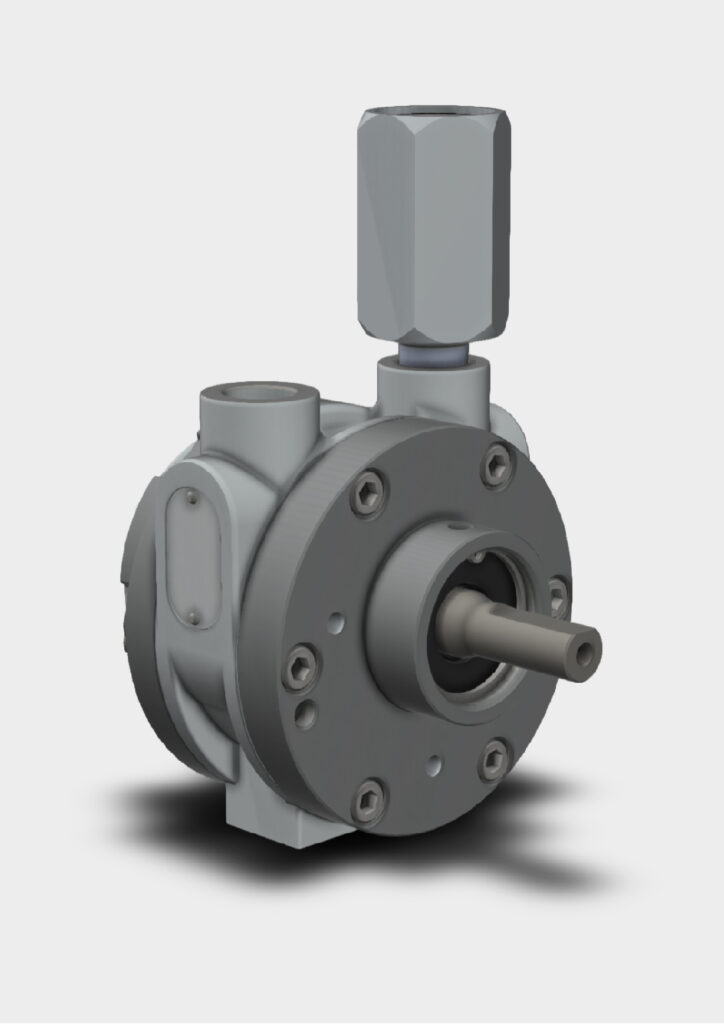

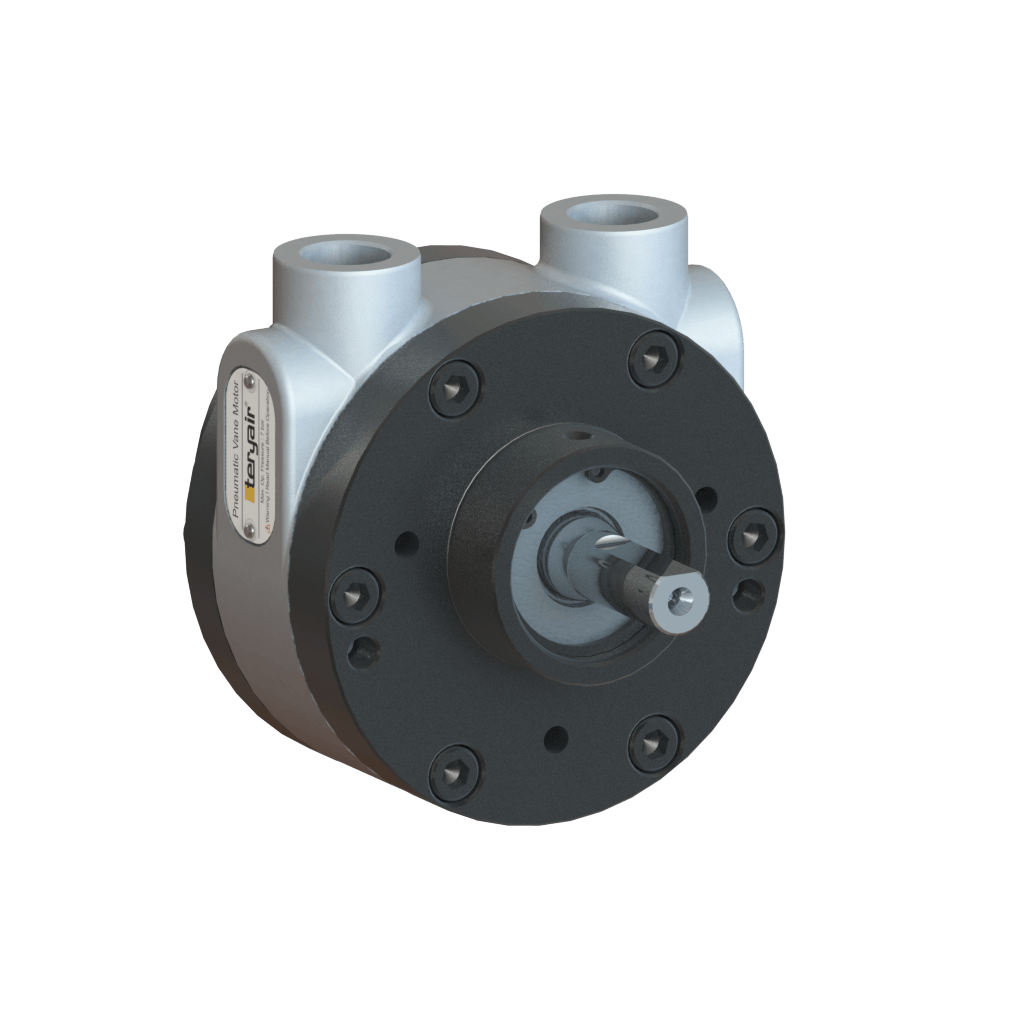

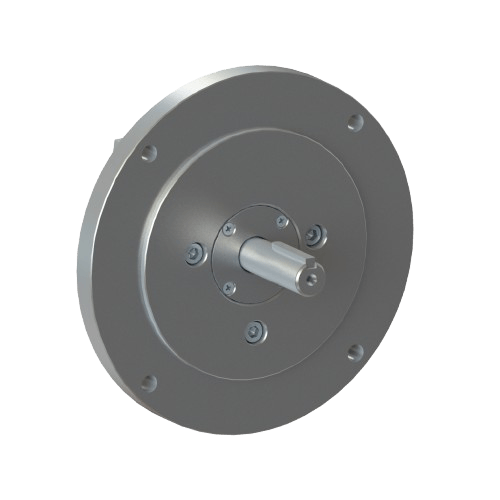

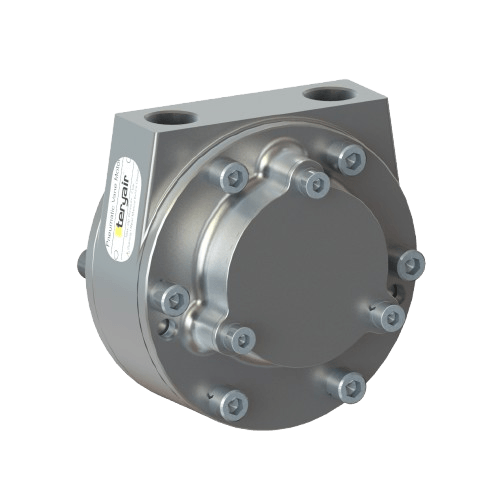

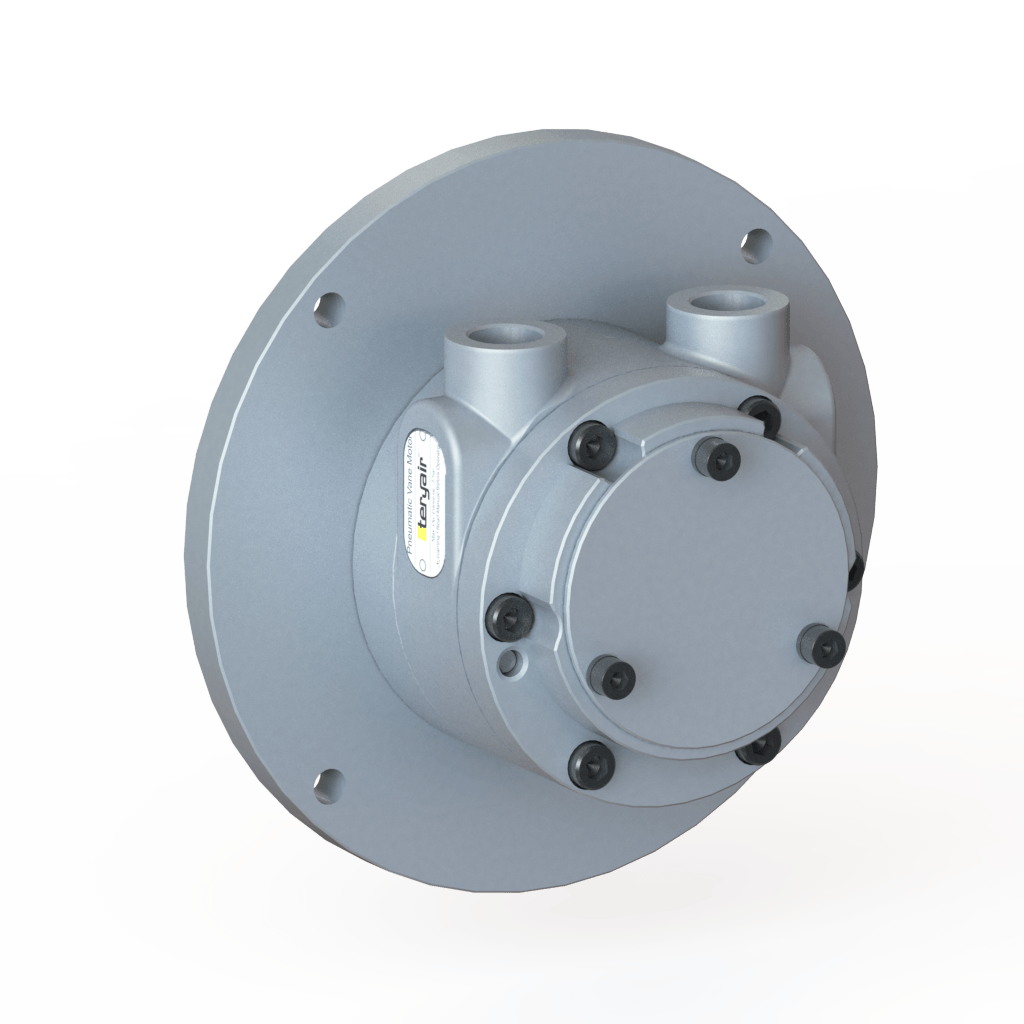

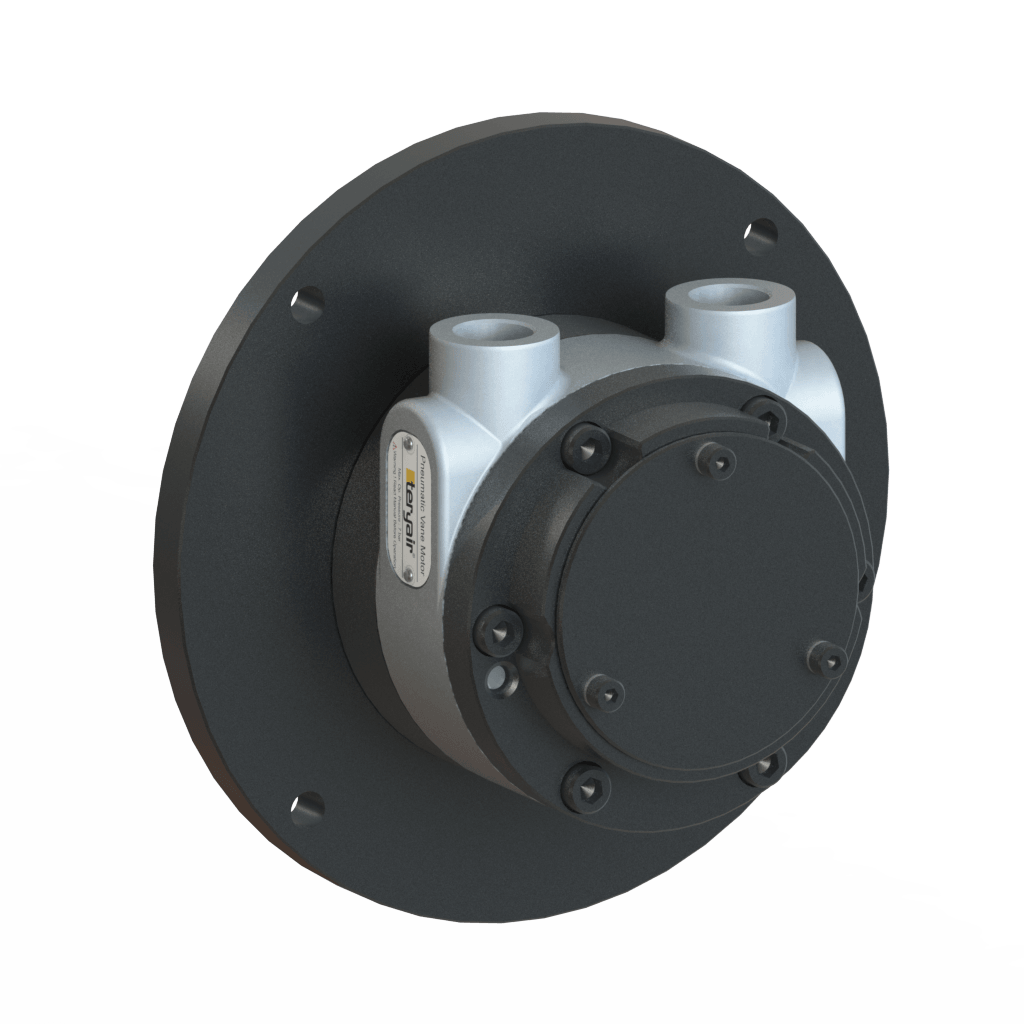

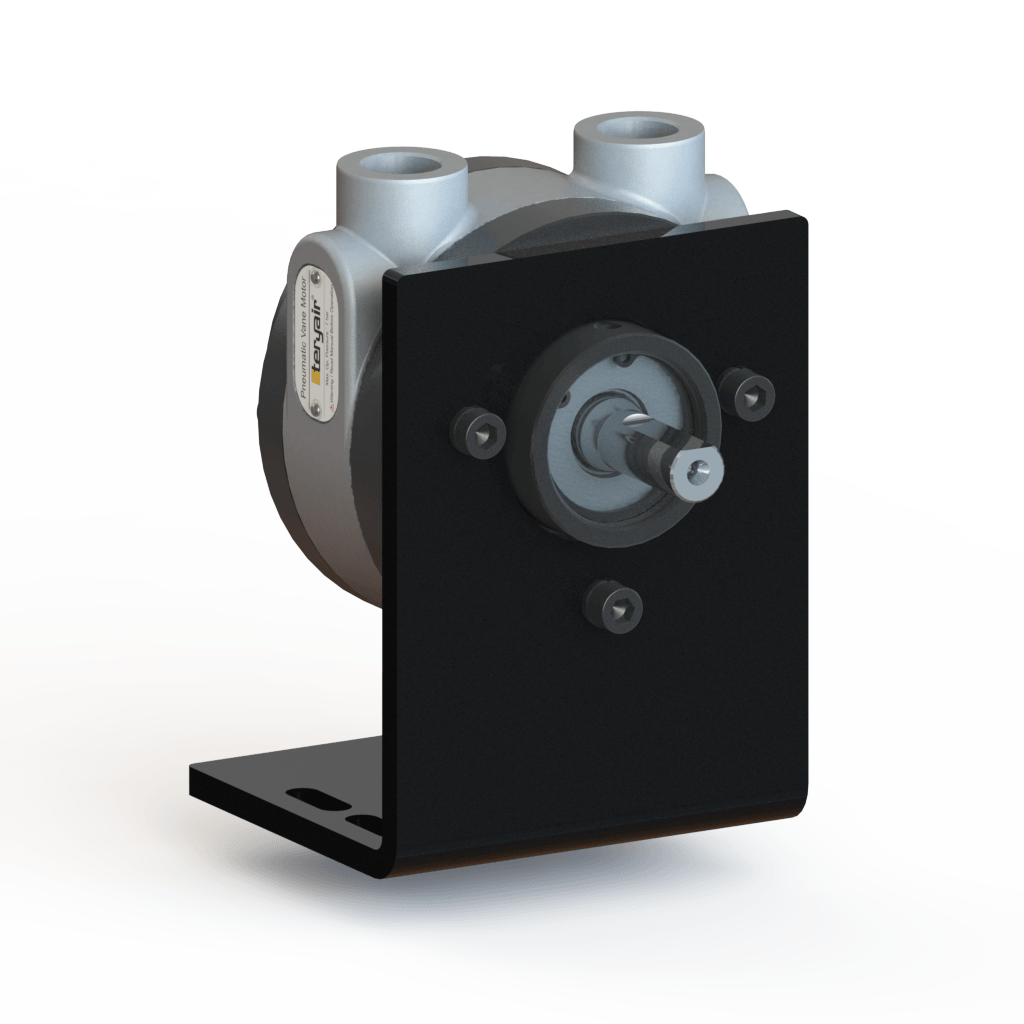

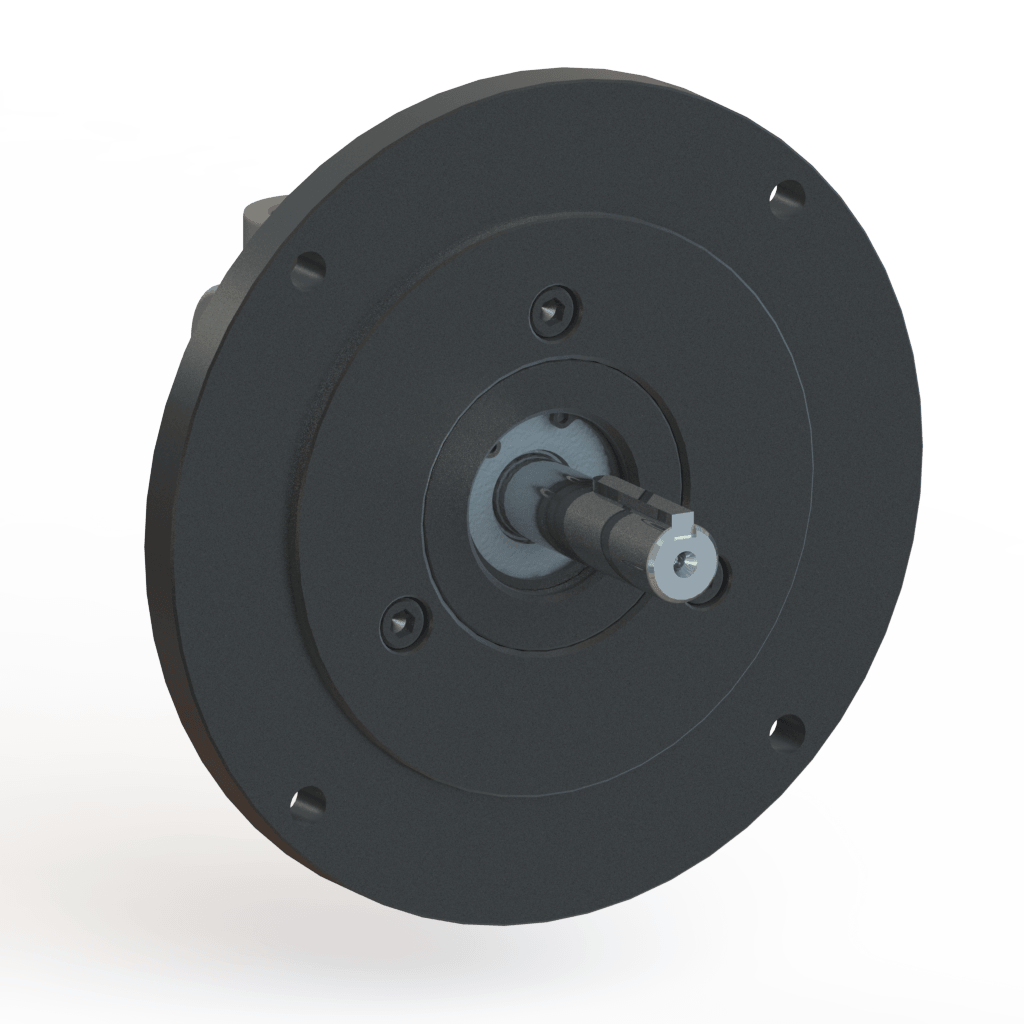

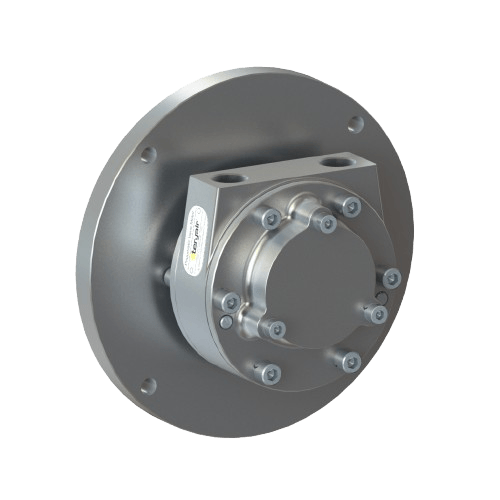

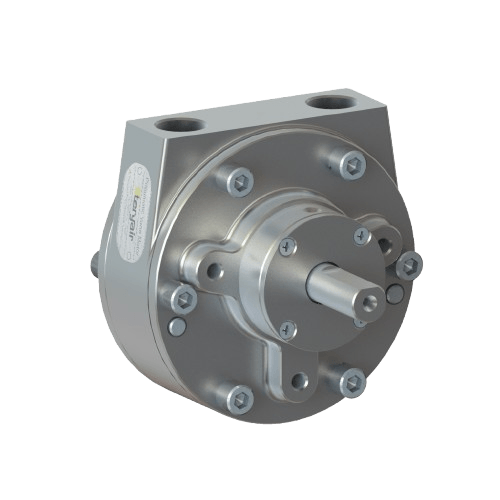

| 2VM Ex Pneumatic Vane Motor | ||||
|---|---|---|---|---|

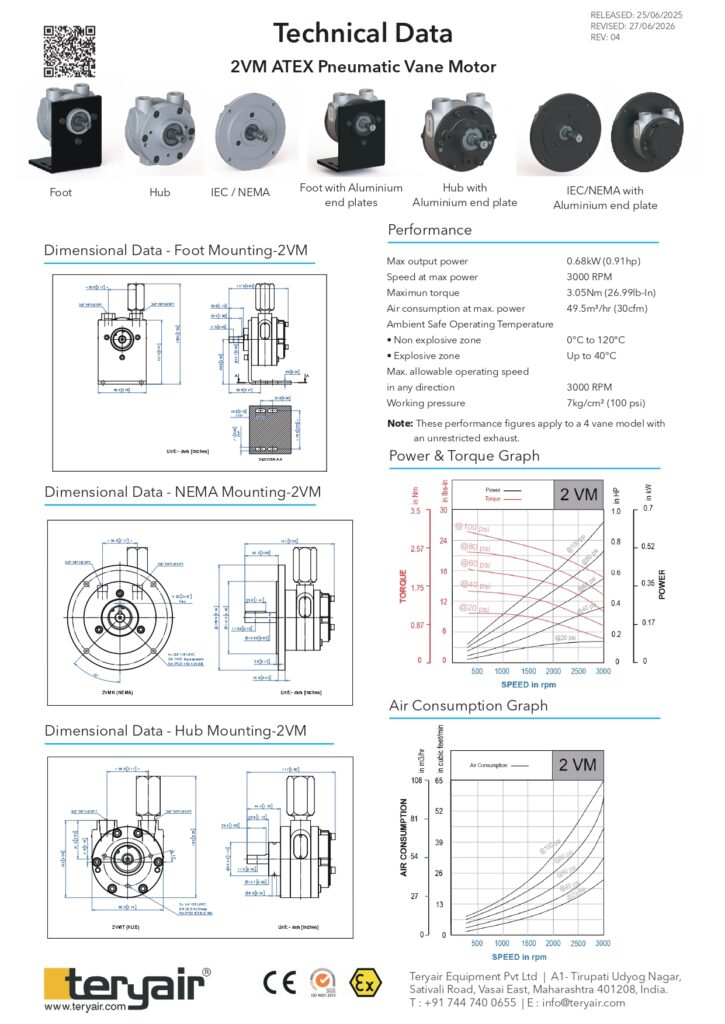

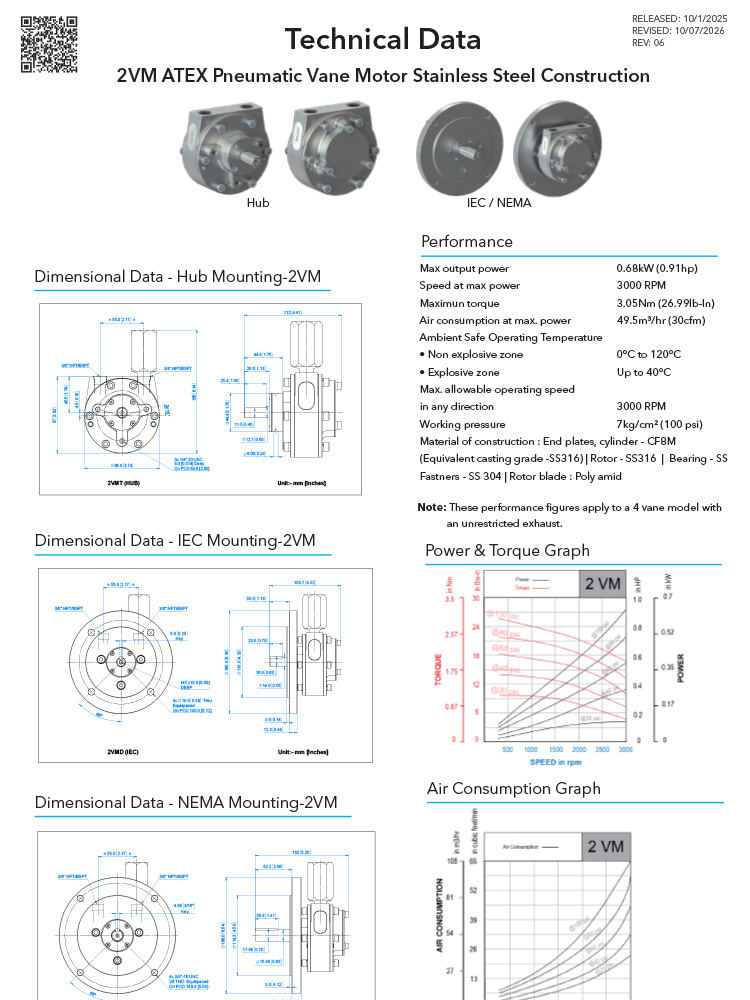

| Brief Specifications ( for full specs, download Technical Data Sheet) | ||||
| Speed at Max Power | 3,000 | RPM | ||
| Max Output Power | 0.68 | kW | 0.91 | Hp |
| Maximum Torque | 3.05 | Nm | 26.99 | lb-inch |
| Air consumption at max power | 49.5 | m3/hr | 30.0 | cfm |
